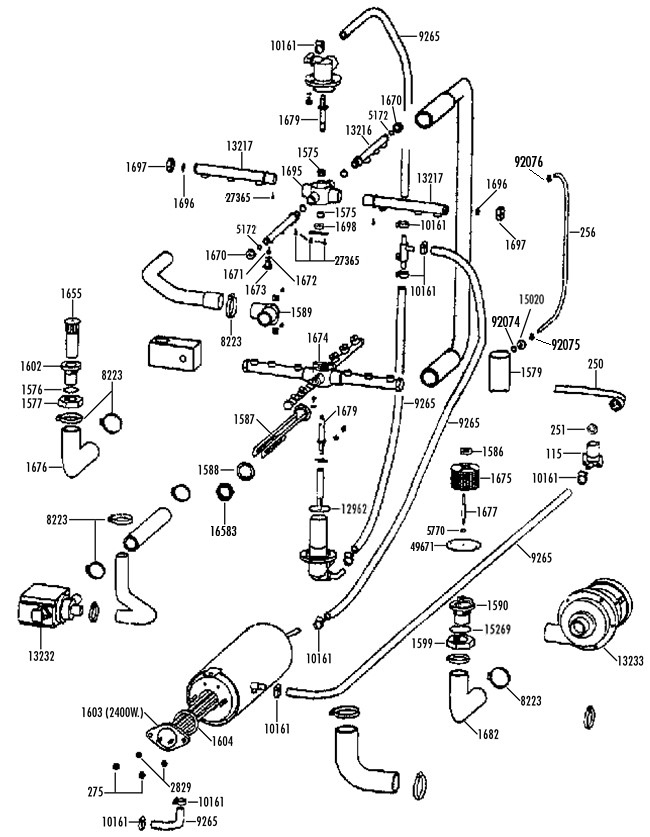

Crystal Line / CF-40

WASH/RINSE

Products

1 Way 180º Solenoid Valve 230V 50/60Hz 3/4"
- Ref: 115
- Quantity / Packaging: 1
Water Inlet Hose 1.5m Pirelli Type 3/4
- Ref: 250
- Quantity / Packaging: 1
DISHWASHER-PRESSURE Switch Hose Ø4x6mm (1m)
- Ref: 256
- Quantity / Packaging: 1
Hexagonal Zinc Plated Nut M8 DIN-934
- Ref: 275/010
- Quantity / Packaging: 10
Cap Ø20x16mm ØINT:12mm
- Ref: 1575
- Quantity / Packaging: 1
Collector O-RING Gasket Ø33x3mm
- Ref: 1576
- Quantity / Packaging: 1
Plastic Nut 1"
- Ref: 1577
- Quantity / Packaging: 1
Pressure Chamber Ø50x85mm
- Ref: 1579
- Quantity / Packaging: 1
Ø36mm M6 Filter Fixing Nut
- Ref: 1586
- Quantity / Packaging: 1
Tank Heating Element 2000W 230V 270mm
- Ref: 1587
- Quantity / Packaging: 1
Tank Heating Element Gasket 47x33x2mm
- Ref: 1588
- Quantity / Packaging: 1
Drain Elbow Sleeve B103F/303F
- Ref: 1589
- Quantity / Packaging: 1
Suction Fitting 1"¼ h:70mm Ø30mm
- Ref: 1590
- Quantity / Packaging: 1
Fitting Pvc Nut 1"¼
- Ref: 1599
- Quantity / Packaging: 1
Drain Pipe 1" CF-35
- Ref: 1602
- Quantity / Packaging: 1
Boiler Heating Element 2400W 230V L=265mm
- Ref: 1603
- Quantity / Packaging: 1
Heating Element Rubber Gasket 51x41x4mm
- Ref: 1604
- Quantity / Packaging: 1
Overflow Ø27x92mm 35F
- Ref: 1655
- Quantity / Packaging: 1
Rinse Arm Cap
- Ref: 1670
- Quantity / Packaging: 1
Wash Swirl
- Ref: 1671
- Quantity / Packaging: 1
Wash Fitting Latch O-RING Gasket Ø10.82x1.78m
- Ref: 1672
- Quantity / Packaging: 1
35F Washing Arm 380mm
- Ref: 1674
- Quantity / Packaging: 1
Dishwasher Tank Filter Ø70x45mm
- Ref: 1675
- Quantity / Packaging: 1
Drain Sleeve Ø26x36mm
- Ref: 1676
- Quantity / Packaging: 1
Filter Bolt M6x42mm
- Ref: 1677
- Quantity / Packaging: 1
Washing Arm Bolt
- Ref: 1679
- Quantity / Packaging: 1
Drain Hose Sleeve Elbow Ø33/43mm 125x100mm
- Ref: 1682
- Quantity / Packaging: 1
Washing Arm Body
- Ref: 1695
- Quantity / Packaging: 1
Washing Arm Cap
- Ref: 1697
- Quantity / Packaging: 1
Washing Arm Nut Ø23x6mm M8
- Ref: 1698
- Quantity / Packaging: 1
Rubber Hose Ø17x8mm Pressure 20 Bar (1 meter)
- Ref: 9265
- Quantity / Packaging: 1
Washing Arm Compact Ø18x160mm
- Ref: 13216
- Quantity / Packaging: 1
Washing Arm Ø26x165mm LEFT/RIGHT
- Ref: 13217
- Quantity / Packaging: 1
Wash Pump 230V 0.30HP CF-40
- Ref: 13233
- Quantity / Packaging: 1
Nut Dishwasher
- Ref: 15020/005
- Quantity / Packaging: 5
O-RING Gasket Ø41.28x3.53mm
- Ref: 15269
- Quantity / Packaging: 1
Nut Dishwasher 1"
- Ref: 16583
- Quantity / Packaging: 1
Disk
- Ref: 49671
- Quantity / Packaging: 1
DOUBLE-WIRE Clamp 7/8mm
- Ref: 92075
- Quantity / Packaging: 1
DOUBLE-WIRE Clamp
- Ref: 92076
- Quantity / Packaging: 1
