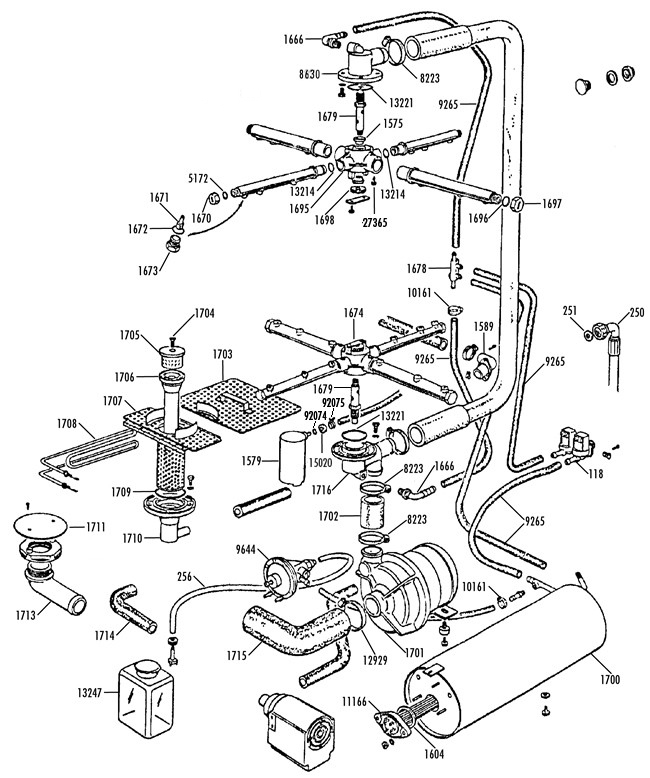

Crystal Line / DS-400

WASH/RINSE

Products

180º 2 Ways Solenoid Valve Horizontal 230V
- Ref: 118
- Quantity / Packaging: 1
Water Inlet Hose 1.5m Pirelli Type 3/4
- Ref: 250
- Quantity / Packaging: 1
DISHWASHER-PRESSURE Switch Hose Ø4x6mm (1m)
- Ref: 256
- Quantity / Packaging: 1
Cap Ø20x16mm ØINT:12mm
- Ref: 1575
- Quantity / Packaging: 1
Pressure Chamber Ø50x85mm
- Ref: 1579
- Quantity / Packaging: 1
Drain Elbow Sleeve B103F/303F
- Ref: 1589
- Quantity / Packaging: 1
Heating Element Rubber Gasket 51x41x4mm
- Ref: 1604
- Quantity / Packaging: 1
Union Angle Fitting 3/8 Ø12mm
- Ref: 1666
- Quantity / Packaging: 1
Rinse Arm Cap
- Ref: 1670
- Quantity / Packaging: 1
Wash Swirl
- Ref: 1671
- Quantity / Packaging: 1
Wash Fitting Latch O-RING Gasket Ø10.82x1.78m
- Ref: 1672
- Quantity / Packaging: 1
35F Washing Arm 380mm
- Ref: 1674
- Quantity / Packaging: 1
Union Double T Fitting Ø12mm
- Ref: 1678
- Quantity / Packaging: 1
Washing Arm Bolt
- Ref: 1679
- Quantity / Packaging: 1
Washing Arm Body
- Ref: 1695
- Quantity / Packaging: 1
Washing Arm Cap
- Ref: 1697
- Quantity / Packaging: 1
Washing Arm Nut Ø23x6mm M8
- Ref: 1698
- Quantity / Packaging: 1
Dishwasher Boiler
- Ref: 1700
- Quantity / Packaging: 1
Wash Pump 230V 0.50HP
- Ref: 1701
- Quantity / Packaging: 1
Sleeve
- Ref: 1702
- Quantity / Packaging: 1
Dishwasher Tank Filter
- Ref: 1703
- Quantity / Packaging: 1
Screw DIN-965 M6x35
- Ref: 1704
- Quantity / Packaging: 1
Dishwasher Overflow Filter
- Ref: 1705
- Quantity / Packaging: 1
Overflow Ø30x173mm
- Ref: 1706
- Quantity / Packaging: 1
Dishwasher Tank Filter
- Ref: 1707
- Quantity / Packaging: 1
Tank Heating Element 2000W 230V
- Ref: 1708
- Quantity / Packaging: 1
Latch O-RING Gasket Ø59.92x66.98mm
- Ref: 1709
- Quantity / Packaging: 1
DS400 Drain Support
- Ref: 1710
- Quantity / Packaging: 1
Drain Elbow Sleeve
- Ref: 1713
- Quantity / Packaging: 1
Drain Sleeve
- Ref: 1714
- Quantity / Packaging: 1
Aspiration Sleeve
- Ref: 1715
- Quantity / Packaging: 1
Lower Support DS-400
- Ref: 1716
- Quantity / Packaging: 1
Upper Distribuitor Support CF-1000 Crystal Li
- Ref: 8630
- Quantity / Packaging: 1
Rubber Hose Ø17x8mm Pressure 20 Bar (1 meter)
- Ref: 9265
- Quantity / Packaging: 1
Rinse Aid Dosing Pump
- Ref: 9644
- Quantity / Packaging: 1
Boiler Heating Element 2800W 230V B-303F
- Ref: 11166
- Quantity / Packaging: 1
O-RING Gasket Epdm Ø14x1.78mm
- Ref: 13214
- Quantity / Packaging: 1
Rinse Aid Tank
- Ref: 13247
- Quantity / Packaging: 1
DOUBLE-WIRE Clamp 7/8mm
- Ref: 92075
- Quantity / Packaging: 1
