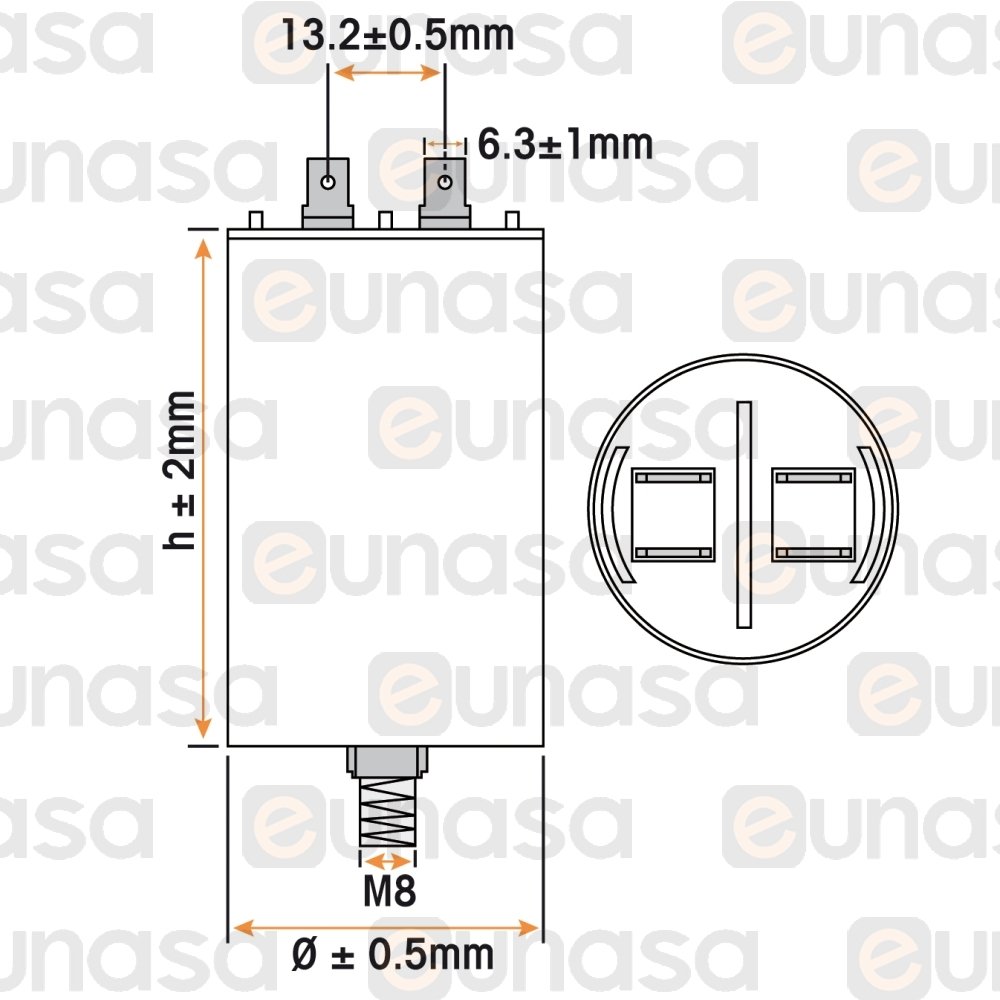

Technical data

• Voltage: 450 V
• Capacitance: 1 µF
• Frequency: 50/60 Hz
• Temperature: -25°C~+85°C ºC
• Connection Type (1): Faston Term. 6.3mm
• Thread (Th): M8 M
• Height (h): 63 mm
• Diameter (Ø):: 34 mm

Extra data

Diameter (Ø): 25mm
Height (h): 57mm

Capacity: 1 µF
Tolerance: ±5%
Voltage: 450VAC
Frequency: 50/60Hz
Operating T°: -25°C~+85°C
