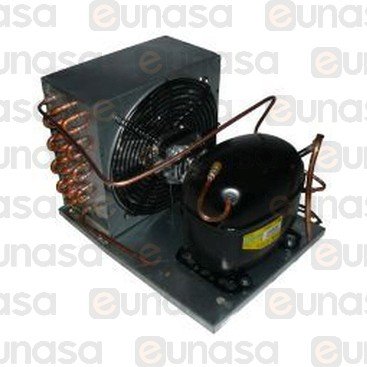

42875 - Hermetic Condensing Unit UCTL4G
- Eunasa code: 42875
- Range: Refrigeration
- Machine type: Different Machines
- Product type: Condensing Unit
- Product subtype: Condensing Unit
- Brand: Danfoss
- Original
- Quantity/Packaging: 1
Technical data
- Model: UCTL4G
- Compressor Model: TL4G
- Pression/temperature: MHBP
- Refrigerant Gas: R-134a
- Compressor Type: Hermetic
- Voltage: 230 V
- Current Type: Single-Phase
- Frequency: 50 Hz
- Electric Current: 1.3 A
- Power: 1/10 HP
- Displacement: 3.86 cm³
- Dimensions (LxWxh): 300x400x225 mm
- Power Fan: 5 W
- Fan Diameter: 172 mm
- Room Temperature: 32 °C
- Cooling Cap. -25°C: 77 Kcal/h
- Cooling Cap. -10°C: 155 Kcal/h
- Cooling Cap. -5°C: 189 Kcal/h
- Cooling Cap. 0°C: 232 Kcal/h
- Test Type: EN.12900
- Asp.Connection: 1/4"
- Liq.Connection: 1/4"
- Mounting Type: Check Valve
Extra data
Weight: 13,12 Kg
Width (W): 289mm
Length: 424mm
Size of fan blades: 172mm
Displacement: 3.86 cm³
Power: 1/8hp
Applications: MBP, HBP, LBP
Electrical Code: G
Fan power consumption (W): 27
Fan Current: 0.19A
Air flow: 300m³ / h
Compressor model: TL4G
Number of phases (compressor): 1
Number of phases (fan): 1
Number of fans: 1
Fan power output: 5W
Refrigerant: R134a
Valid for (brand and model)
- Brand
- Model
Danfoss
Secop
