Technical data

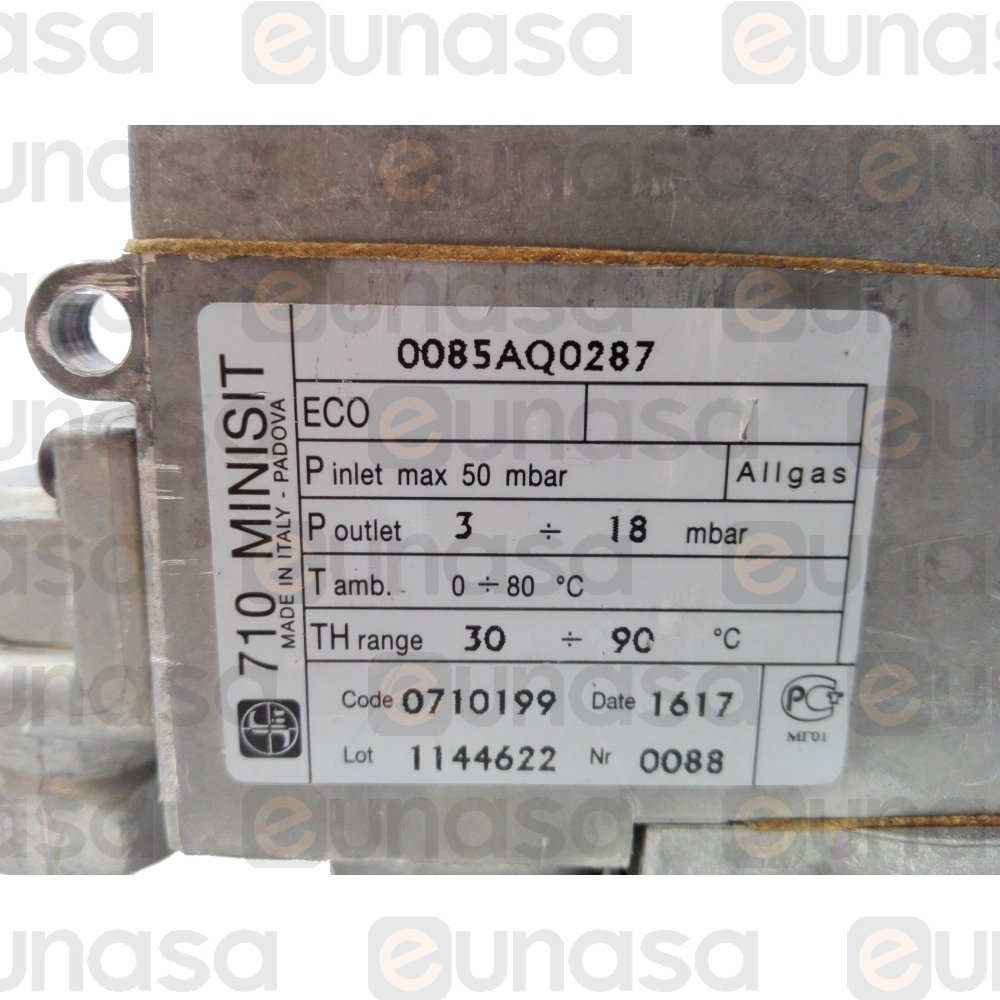

• Model: MINISIT 710
• Maximum Tº: 90 °C
• Tº Range: 30/90 °C
• Inlet Thread (iTh): 1/2" M
• Out Put Thread (oTh): 1/2" M
• Thermocouple C(thcC): M9x1
• Pilot Burner C.(pbC): M10x1
• Sensor Diameter(snØ): 8 mm
• Sensor Lenght (snL): 100 mm
• Capillary Lenght(cL): 1050 mm
• Pressure Regulator: Yes
• Pressure Range: 3/18 mbar
• Max.Pressure (50Hz): 50 bar
• Room Temperature: 0/60 °C
