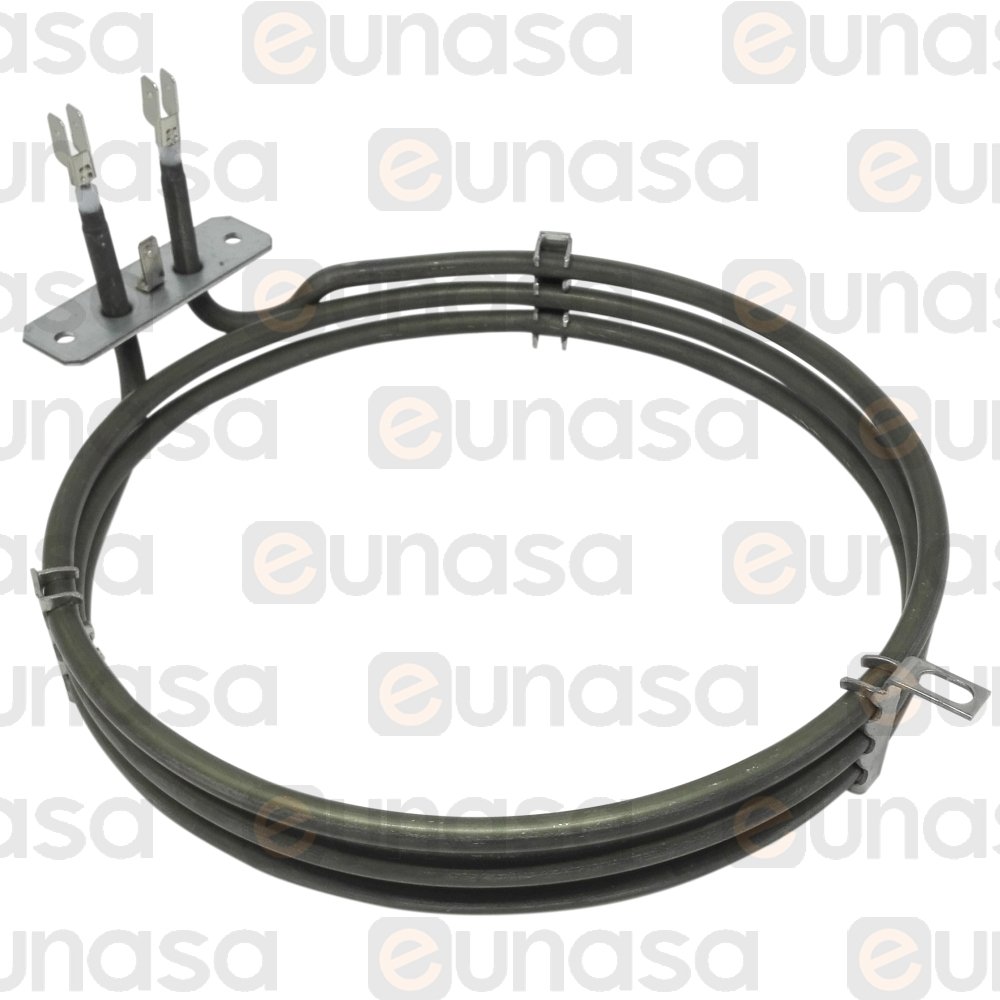

Technical data

• Power: 2300 W
• Voltage: 230 V

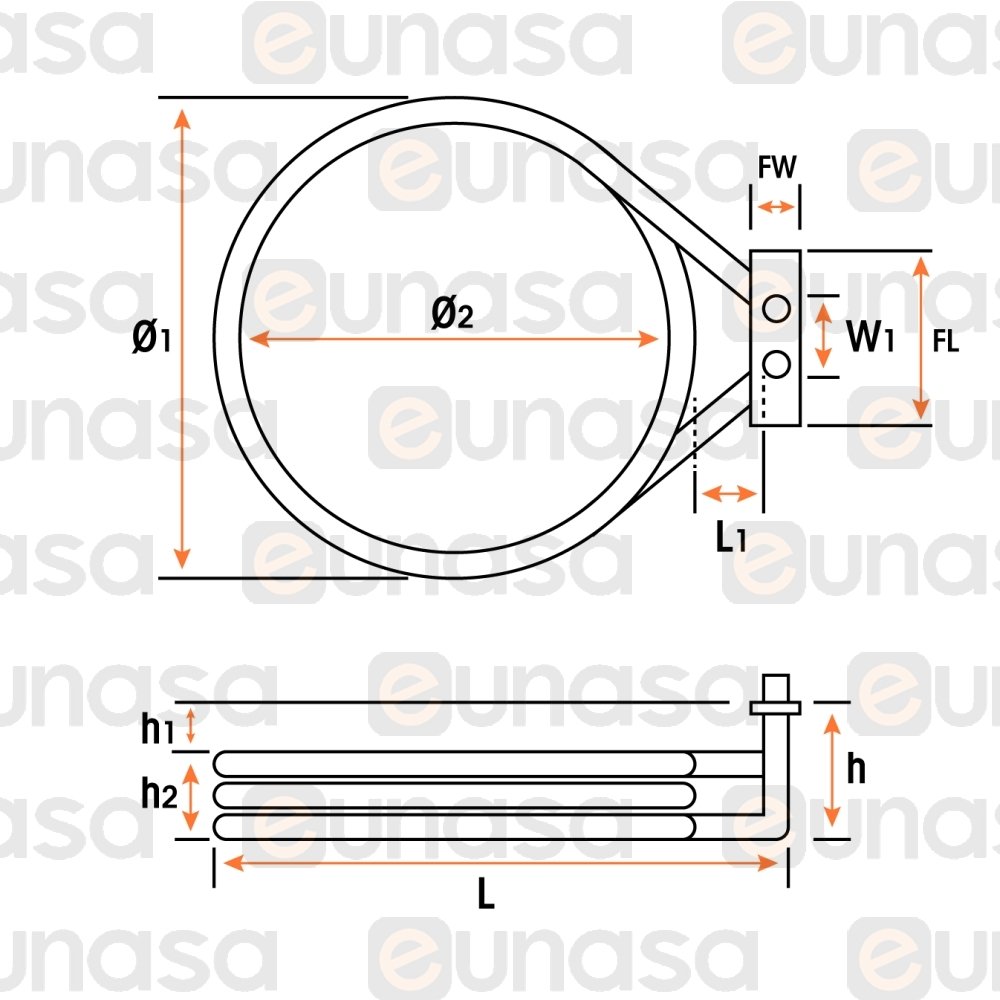

• Diameter 1(Ø1): 197 mm
• Diameter 2 (Ø2): 183 mm
• Length (L):: 223 mm
• Length 1 (L1): 12 mm
• Width 1 (W1):: 30 mm
• Height (h): 30 mm
• Height 1 (h1): 5 mm
• Height 2 (h2): 30 mm
• Fastening Type: Rectangular Flange
• Flange Length (FL): 70 mm
• Flange Width (FW): 22 mm
• Dist. Between Holes: 56 mm
• Type Of Use: Dry

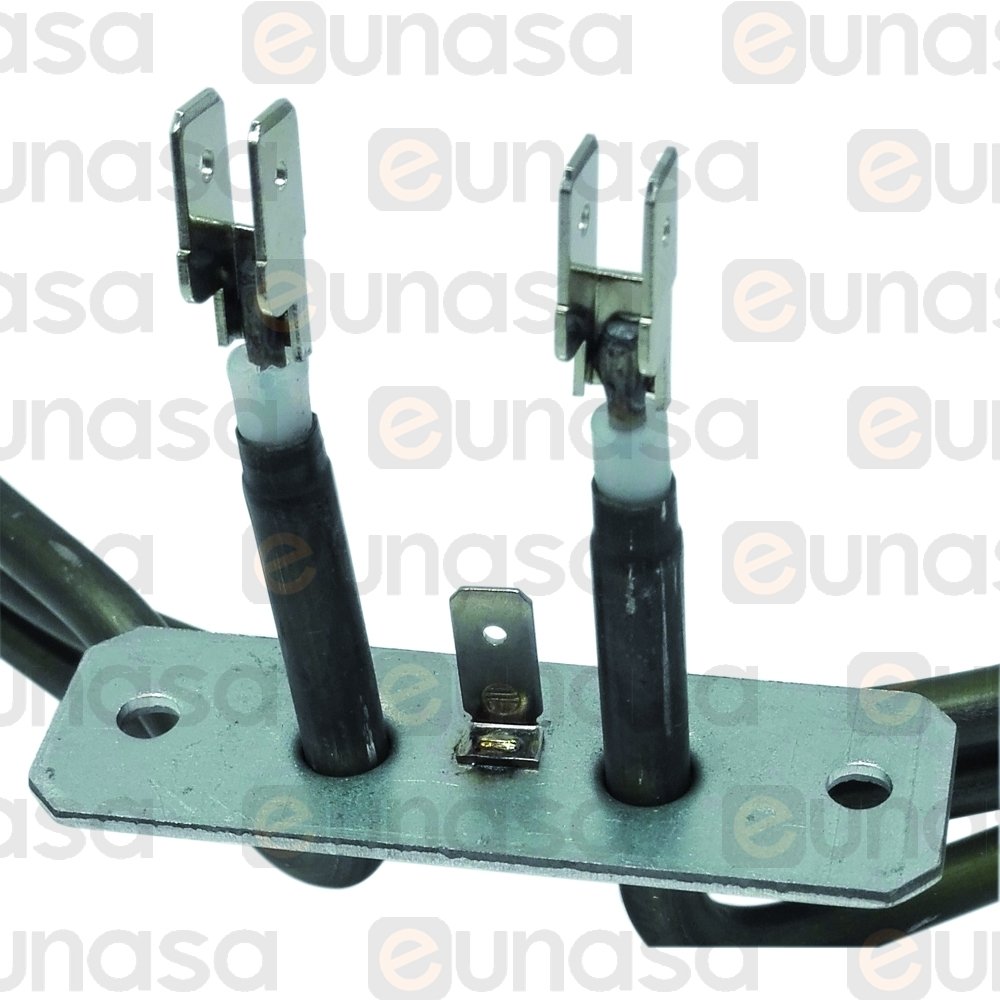

• Connection Type (1): Faston Term. 6.3mm
• Diameter (Ø):: 200 mm
