Technical data

• Power: 9000 W
• Voltage: 230 V

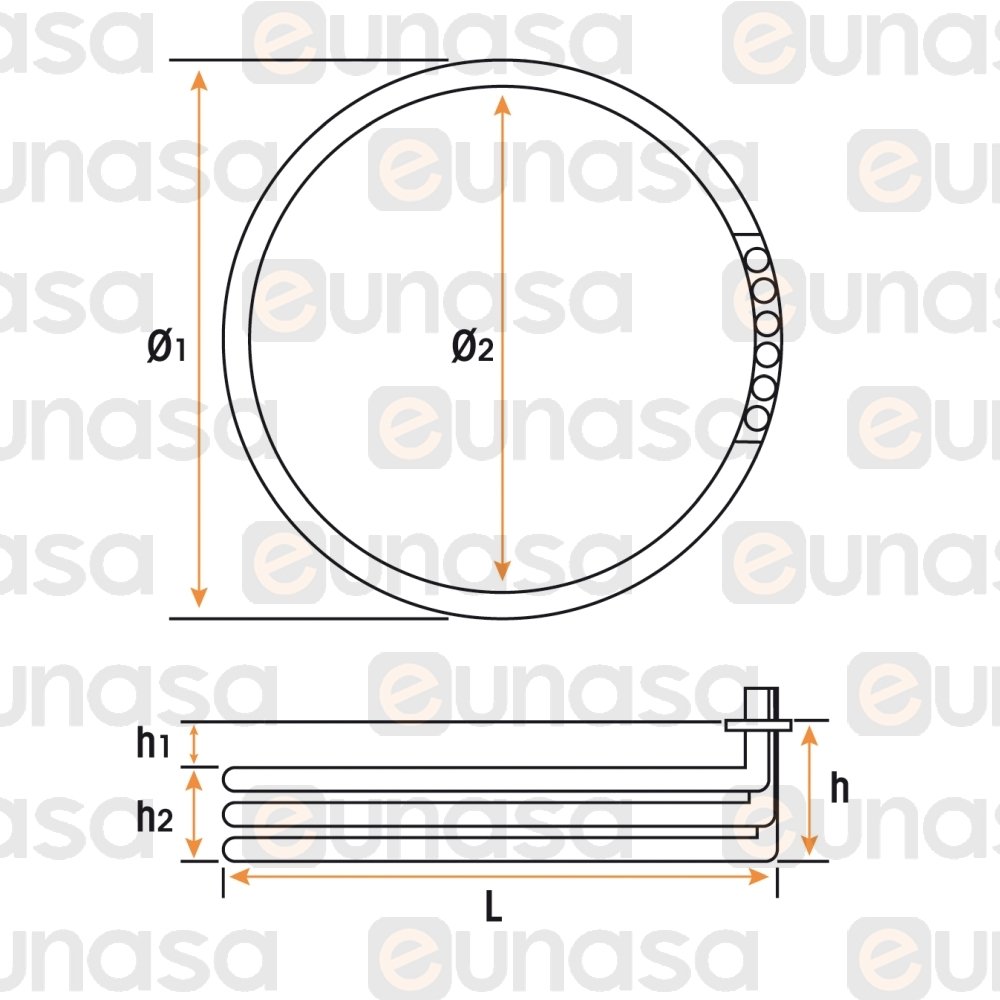

• Diameter 1(Ø1): 458 mm
• Diameter 2 (Ø2): 445 mm
• Length (L):: 474 mm
• Width 1 (W1):: 156 mm
• Height (h): 130 mm
• Height 1 (h1): 33 mm
• Height 2 (h2): 97 mm
• Pipe Diameter (pØ): 6.5 mm
• Fastening Type: Rectangular Flange
• Flange Length (FL): 210 mm
• Flange Width (FW): 24 mm
• Type Of Use: Dry

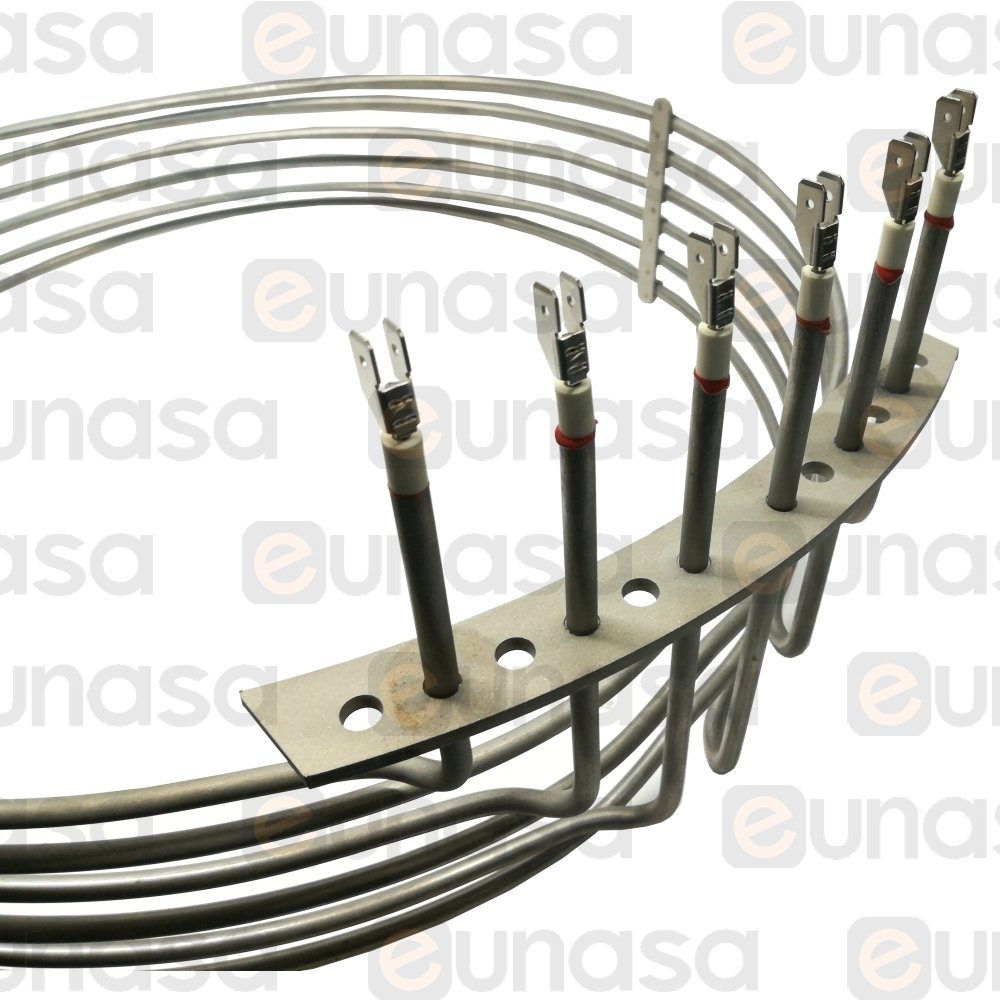

• Connection Type (1): Faston Term. 6.3mm
