Technical data

• Model: 25ST
• Tº Range: 120/320 °C

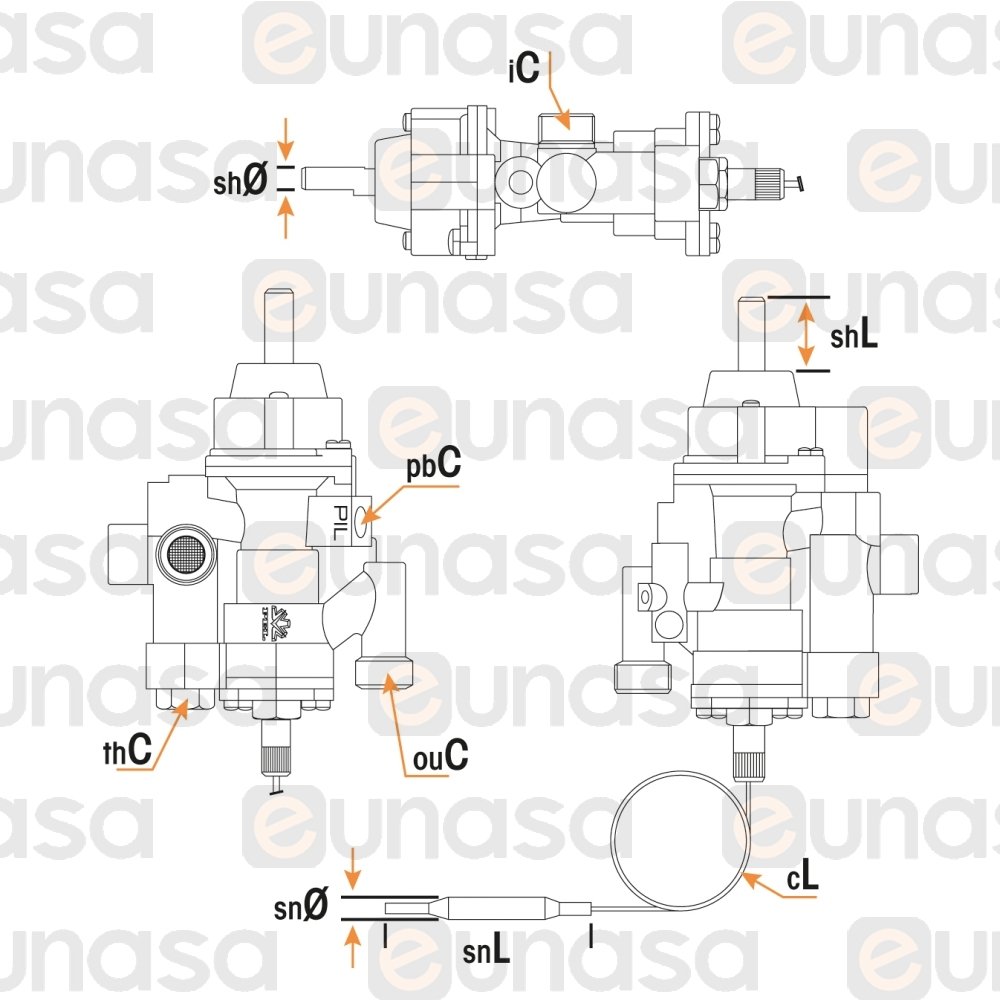

• Inlet Connection(iC): M16x1.5xØ10mm M
• Outlet Connec.(ouC): M16x1.5xØ10/8mm M
• Thermocouple C(thcC): M9x1
• Pilot Burner C.(pbC): M10x1
• Sensor Diameter(snØ): 6 mm
• Sensor Lenght (snL): 100 mm
• Capillary Lenght(cL): 1200 mm
• Shaft Diameter (shØ): 8x6.5 mm
• Shaft Lenght (shL): 21/15 mm
